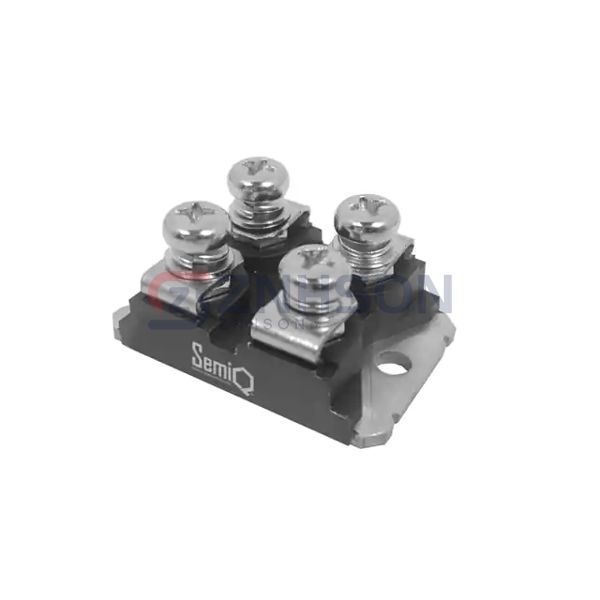

GHXS045A120S-D3
SemiQ
SemiQ
DIODE SCHOT SBD 1200V 45A SOT227
$90.20
Available to order
Reference Price (USD)
30+
$78.50700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the GHXS045A120S-D3 by SemiQ represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SemiQ's patented junction design, the GHXS045A120S-D3 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 45A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 45 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 300 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
