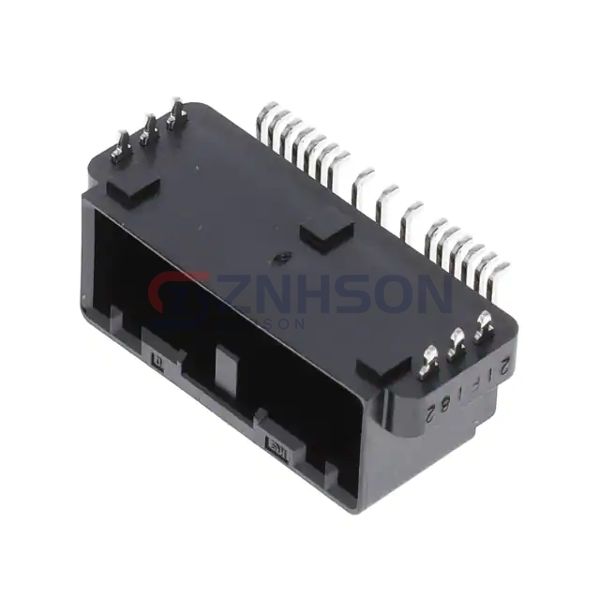

GT8E-16DP-2H(55)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 16
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.403" (10.23mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyphenylene Sulfide (PPS)
• Features: Solder Retention
• Operating Temperature: -40°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): 1A
• Voltage Rating: 250VAC
