GX60-18P(30)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD R/A 18POS 0.4MM
$0.78
Available to order
Reference Price (USD)
1,500+
$0.67500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GX60-18P(30) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the GX60-18P(30) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.016" (0.40mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock, Shielded
- Operating Temperature: -30°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30V
Related Products
TE Connectivity AMP Connectors
9-146254-0-06
Samtec Inc.
ZSS-125-02-G-D-540-01
Sullins Connector Solutions
PBC30SBCN
Samtec Inc.
FTSH-106-01-S-D
Samtec Inc.
EHF-125-01-LM-D-SM-LC
Samtec Inc.

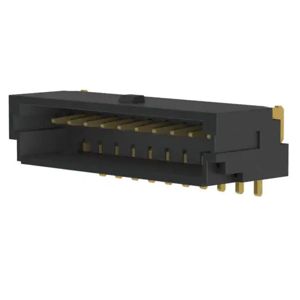

T1M-10-GF-S-V-K-TR
TE Connectivity AMP Connectors

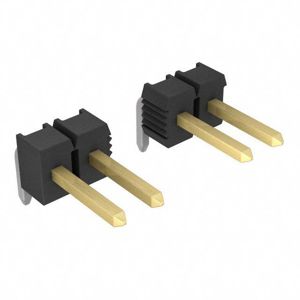

9-103325-0-26
Samtec Inc.

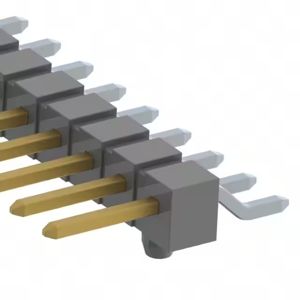

TSM-113-01-F-SH-A
Samtec Inc.

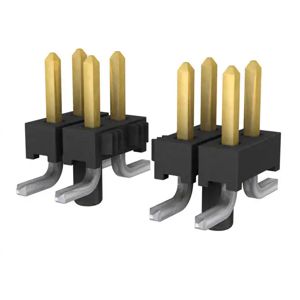

TMM-106-06-LM-D-SM-A-TR
