H2103-01
Harwin Inc.
Harwin Inc.

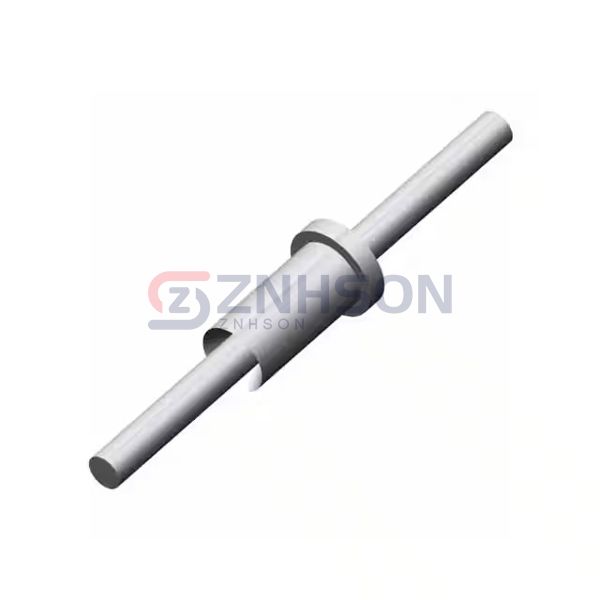

CONN PC PIN CIRC 0.036DIA TIN
$0.00
Available to order
Reference Price (USD)
4,000+
$0.15840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The H2103-01 by Harwin Inc. is a top-tier terminal connector perfect for PC pin and single post applications. Featuring high conductivity and corrosion resistance, this connector is a must-have for any electrical project. Commonly used in data centers, military equipment, and consumer electronics, the H2103-01 delivers consistent performance. Harwin Inc. is a leader in interconnect solutions, and the H2103-01 exemplifies their commitment to quality. Upgrade your connections with Harwin Inc.'s H2103-01 today.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.036" (0.91mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.219" (5.56mm)
- Length - Below Flange: 0.324" (8.23mm)
- Length - Overall: 0.563" (14.30mm)
- Flange Diameter: 0.094" (2.39mm)
- Mounting Hole Diameter: 0.070" ~ 0.074" (1.78mm ~ 1.87mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.126" (3.20mm)
- Contact Material: Brass
- Contact Finish: Tin
- Contact Finish Thickness: -
