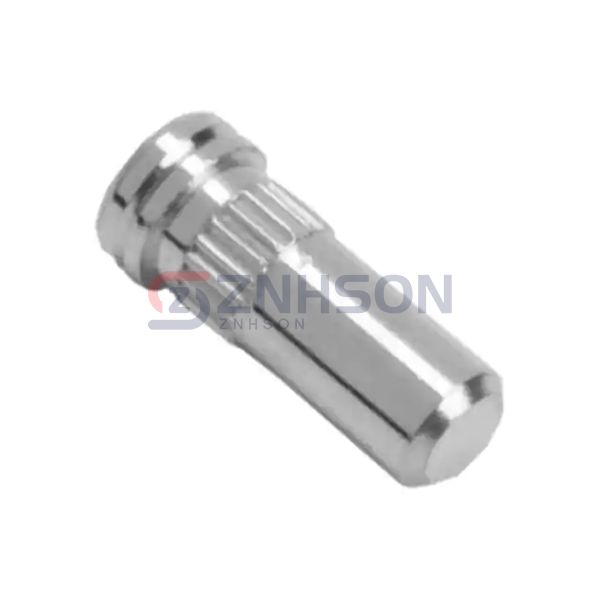

H8501-46
Harwin Inc.
Harwin Inc.
PCB SOCKET
$0.20
Available to order
Reference Price (USD)
2,000+
$0.18592
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The H8501-46 Socket Connector from Harwin Inc. is the perfect solution for your interconnection needs. Featuring a durable design and excellent electrical properties, this connector is suitable for use in industrial machinery, telecommunications, and more. Harwin Inc. ensures that H8501-46 meets the highest standards, providing you with a component that is both reliable and efficient. Whether you're working on a small project or a large-scale system, H8501-46 is the right choice.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Press-Fit, Knurled
- Length - Overall: 0.224" (5.69mm)
- Accepts Pin Diameter: 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.075" ~ 0.077" (1.91mm ~ 1.96mm)
- Flange Diameter: 0.093" (2.36mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Tin
- Contact Finish Thickness: 157.5µin (4.00µm)
