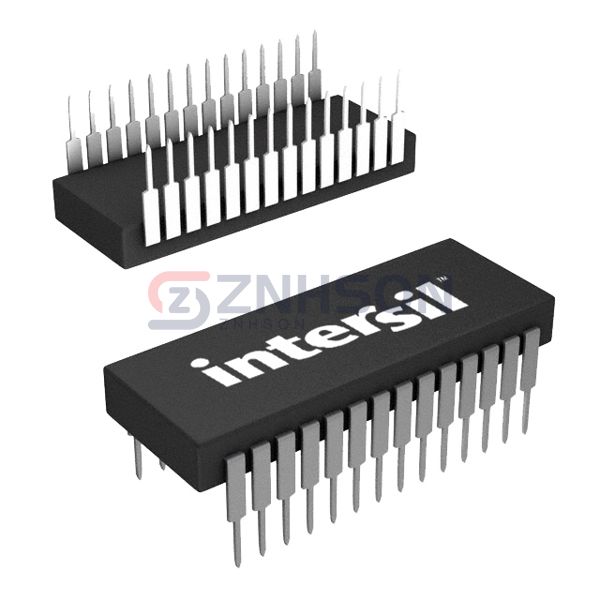

HI1-0546-5
Renesas Electronics America Inc
Renesas Electronics America Inc
IC MULTIPLEXER 16X1 28CDIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Renesas Electronics America Inc's HI1-0546-5, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The HI1-0546-5 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.8kOhm
- Channel-to-Channel Matching (ΔRon): 126Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 300ns, 300ns (Typ)
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 10pF, 52pF
- Current - Leakage (IS(off)) (Max): 30pA (Typ)
- Crosstalk: -
- Operating Temperature: 0°C ~ 75°C (TA)
- Mounting Type: Through Hole
- Package / Case: 28-CDIP (0.600", 15.24mm)
- Supplier Device Package: 28-CerDip
