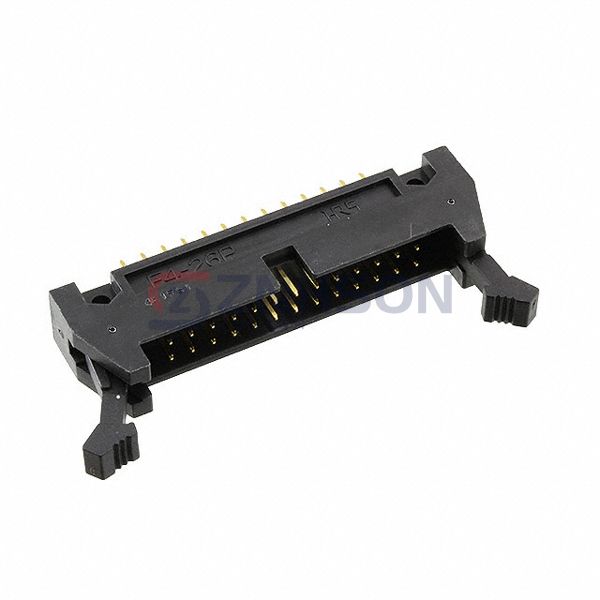

HIF4-26P-3.18DSA
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 26POS 3.18MM
$13.44
Available to order
Reference Price (USD)
1+
$11.22000
20+
$10.20000
100+
$8.67000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF4-26P-3.18DSA by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.125" (3.18mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.201" (5.10mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.673" (17.09mm)
- Insulation Height: 0.720" (18.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
