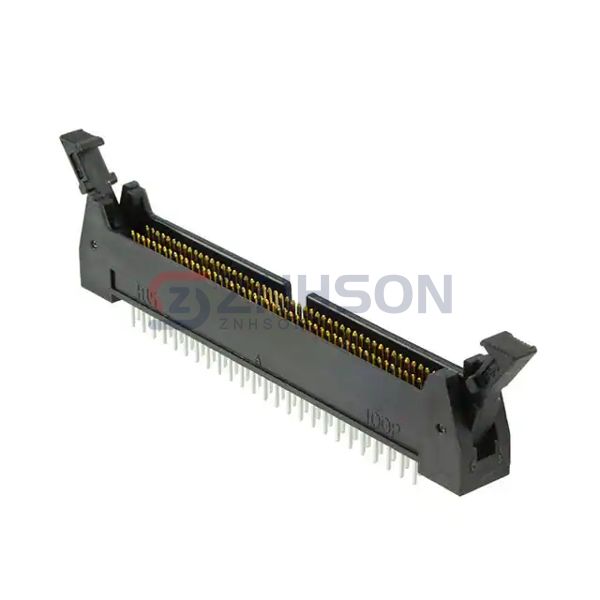

HIF6-100PA-1.27DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 100POS 1.27MM
$9.32
Available to order
Reference Price (USD)
1+
$8.11000
60+
$6.76000
120+
$6.42200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF6-100PA-1.27DSA(71) male pin header by Hirose Electric Co Ltd offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Hirose Electric Co Ltd for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.606" (15.39mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A
- Voltage Rating: 300V
