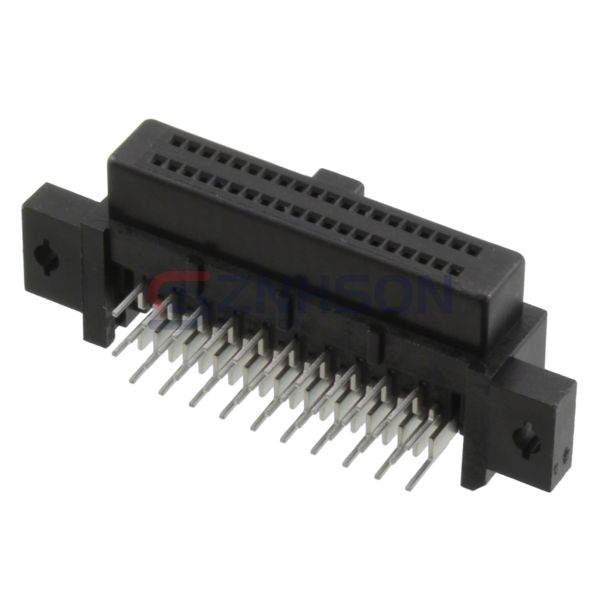

HIF6B-40DA-1.27DS(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN RCPT 40P 0.05 GOLD PCB R/A
$10.84
Available to order
Reference Price (USD)
1+
$8.38000
20+
$8.02700
40+
$7.32900
60+
$6.98000
100+
$6.63100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with HIF6B-40DA-1.27DS(71) Hirose Electric Co Ltd Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Hirose Electric Co Ltd connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 40
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: -
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Mounting Flange, Polarizing Key
- Current Rating (Amps): 0.5A
- Voltage Rating: 125VAC
