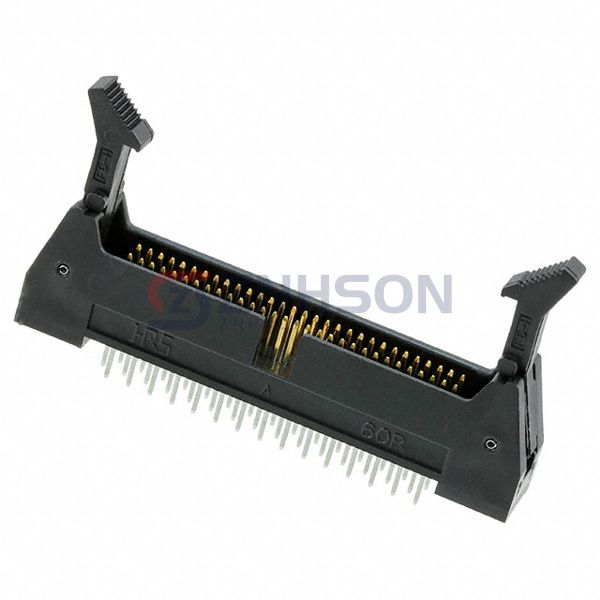

HIF6H-60PA-1.27DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 60POS 1.27MM
$7.18
Available to order
Reference Price (USD)
1+
$6.00000
10+
$5.75000
100+
$4.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the HIF6H-60PA-1.27DSA(71) rectangular connector header from Hirose Electric Co Ltd for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Hirose Electric Co Ltd is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.205" (5.21mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.606" (15.39mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A
- Voltage Rating: 300V
Related Products
Molex
5041872670
Amphenol ICC (FCI)
75168-101-36LF
Molex
43650-0451
Samtec Inc.
TSM-107-02-T-SV-LC
TE Connectivity AMP Connectors
2390138-6
TE Connectivity AMP Connectors
826942-7
Amphenol ICC (FCI)
77315-113-03LF
Preci-Dip
800-10-035-20-001101

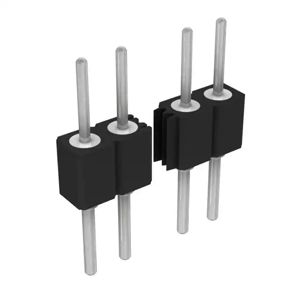

Preci-Dip
