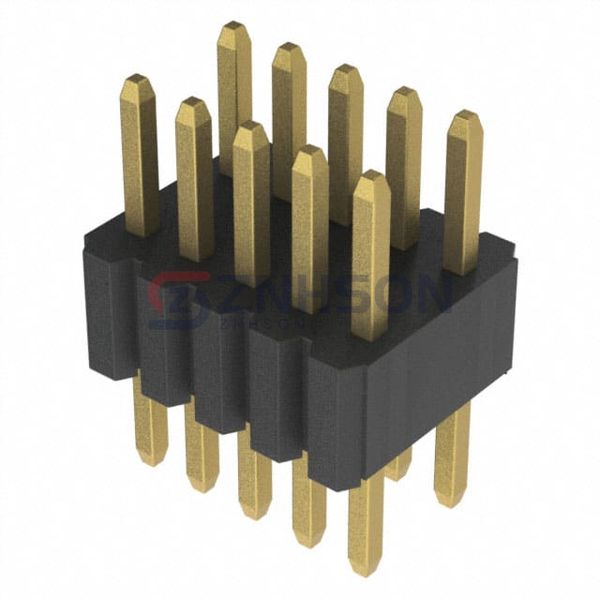

HPH2-B-10-UA
Adam Tech
Adam Tech
CONN HEADER VERT 10POS 1.27MM
$0.65
Available to order
Reference Price (USD)
1+
$0.62000
10+
$0.57800
100+
$0.44280
500+
$0.38500
1,000+
$0.31763
5,000+
$0.27913
10,000+
$0.25988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HPH2-B-10-UA by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the HPH2-B-10-UA supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.105" (2.67mm)
- Overall Contact Length: 0.323" (8.20mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
