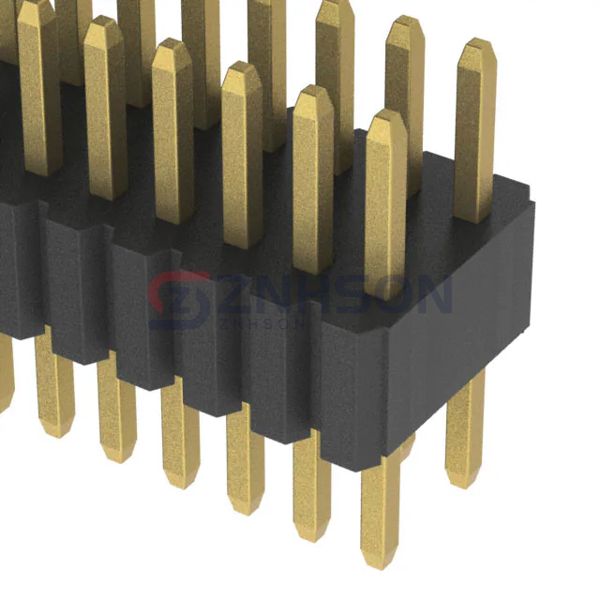

HPH2-B-18-UA
Adam Tech
Adam Tech
CONN HEADER VERT 18POS 1.27MM
$1.02
Available to order
Reference Price (USD)
1+
$0.97000
10+
$0.85100
100+
$0.73460
500+
$0.60102
1,000+
$0.53424
5,000+
$0.46746
10,000+
$0.44409
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the HPH2-B-18-UA rectangular connector header by Adam Tech. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the HPH2-B-18-UA ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Adam Tech for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.105" (2.67mm)
- Overall Contact Length: 0.323" (8.20mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
TSW-126-26-G-S
Samtec Inc.
TSW-108-15-G-D
Samtec Inc.
TSM-108-03-SM-DH-A
Samtec Inc.
FTSH-105-03-F-DV-P
Samtec Inc.
FTSH-145-01-L-MT
Samtec Inc.
TFM-140-02-S-DH
Samtec Inc.
TSM-104-01-TM-DV-TR

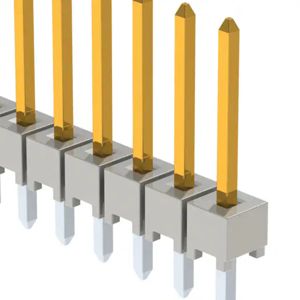

Samtec Inc.
HTSW-130-14-S-S

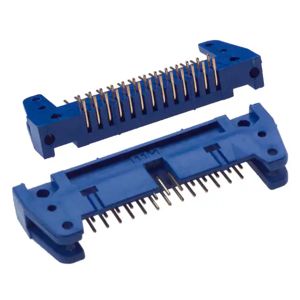

CW Industries
