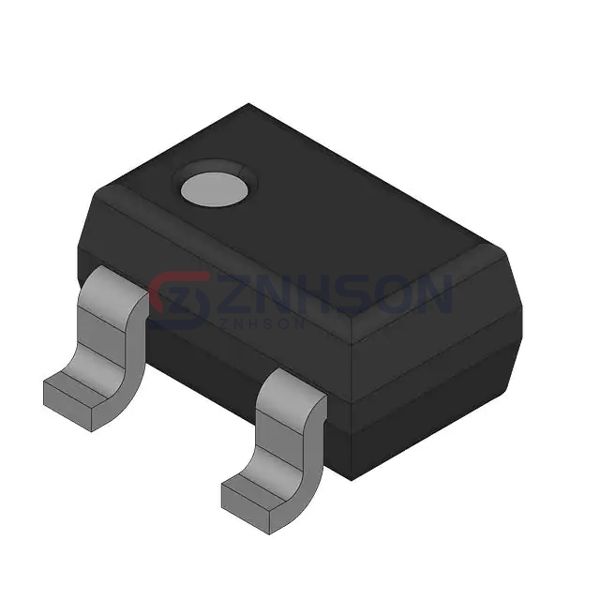

HRB0103BTR-E
Renesas Electronics America Inc
Renesas Electronics America Inc
SCHOTTKY DIODE
$0.10
Available to order
Reference Price (USD)
1+
$0.10000
500+
$0.099
1000+
$0.098
1500+
$0.097
2000+
$0.096
2500+
$0.095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the HRB0103BTR-E by Renesas Electronics America Inc represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Renesas Electronics America Inc's patented junction design, the HRB0103BTR-E achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 50mA
- Voltage - Forward (Vf) (Max) @ If: 440 mV @ 100 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 30 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: 3-CMPAK
