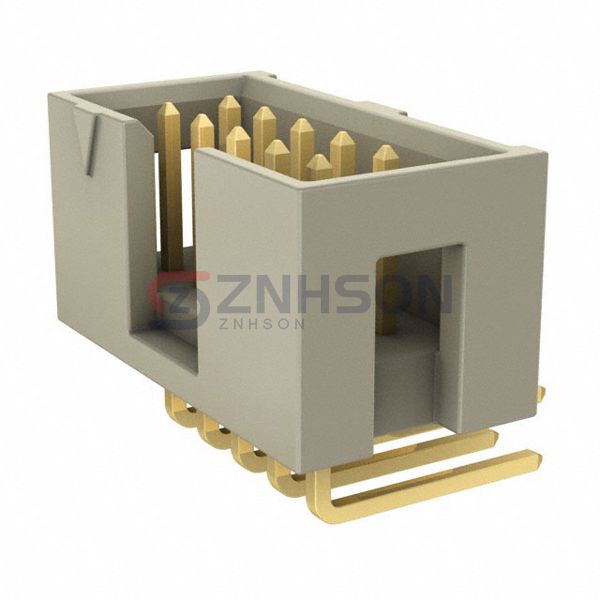

HTST-105-05-G-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 10POS 2.54MM
$5.64
Available to order
Reference Price (USD)
1+
$3.23000
27+
$2.83815
108+
$2.58000
513+
$2.19300
1,026+
$1.87050
5,022+
$1.67700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the HTST-105-05-G-D-RA rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the HTST-105-05-G-D-RA is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: -
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
