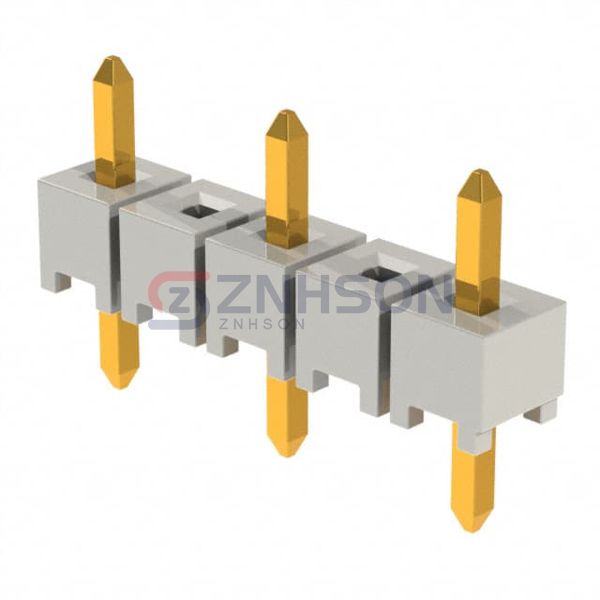

HTSW-203-06-G-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 3POS 5.08MM
$1.34
Available to order
Reference Price (USD)
1+
$0.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HTSW-203-06-G-S male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.095" (2.41mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
