HV2815/AJA
Microchip Technology
Microchip Technology
IC 32-CH 200V +5V BIAS MUX SPST
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the HV2815/AJA by Microchip Technology delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The HV2815/AJA excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 32
- On-State Resistance (Max): 6Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 5V
- Voltage - Supply, Dual (V±): 5V
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 50MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): -
- Current - Leakage (IS(off)) (Max): -
- Crosstalk: -
- Operating Temperature: -
- Mounting Type: Surface Mount

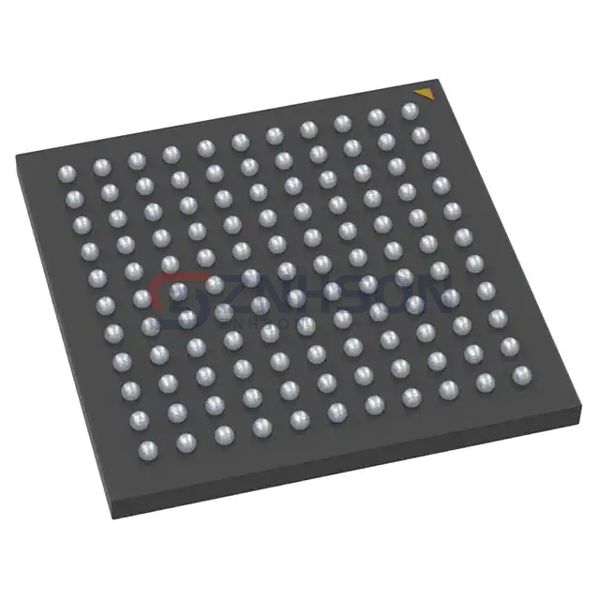

- Package / Case: 121-TFBGA
- Supplier Device Package: 121-TFBGA (10x10)
