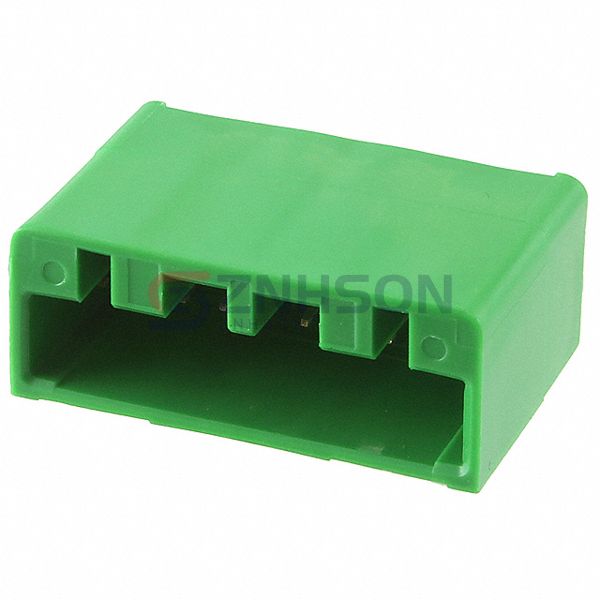

IL-AG5-10P-S3T2
JAE Electronics
JAE Electronics
CONN HEADER VERT 10POS 2.5MM
$1.42
Available to order
Reference Price (USD)
1+
$1.33000
10+
$1.17300
100+
$1.01200
952+
$0.80500
1,904+
$0.69000
5,712+
$0.64400
10,472+
$0.61180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IL-AG5-10P-S3T2 by JAE Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JAE Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.594" (15.09mm)
- Insulation Height: 0.717" (18.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
894-70-012-10-004101
Samtec Inc.
TSM-117-03-L-SV
Samtec Inc.
TMS-141-02-SM-D
Preci-Dip

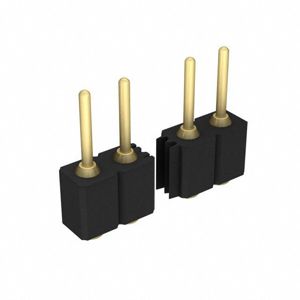

800-10-020-30-480101
Samtec Inc.
TSW-138-05-S-S
Molex

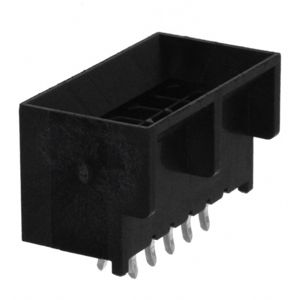

0444321002
Sullins Connector Solutions

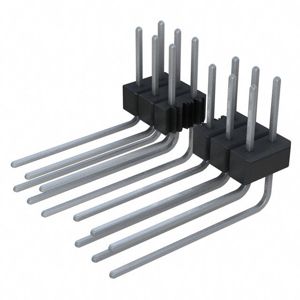

PEC25DBEN
Preci-Dip

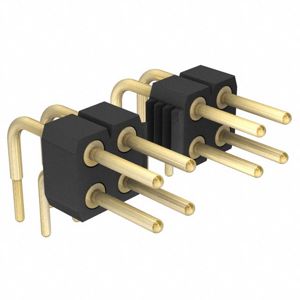

802-10-070-20-001101
