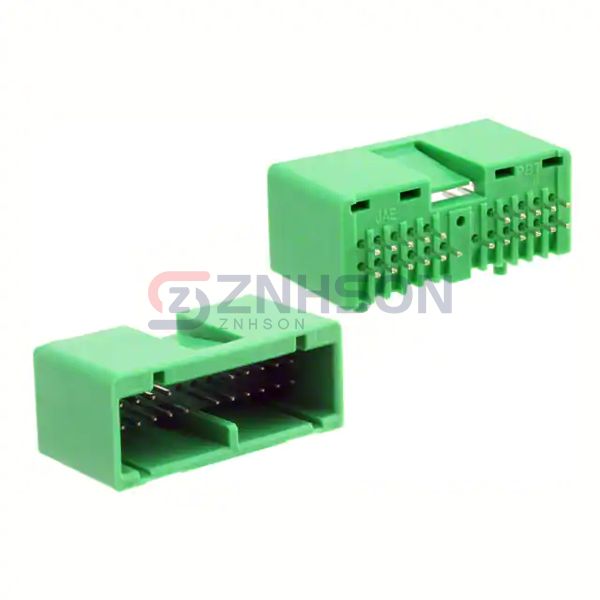

IL-AG5-22P-D3T2
JAE Electronics
JAE Electronics
CONN HEADER VERT 22POS 2.5MM
$2.68
Available to order
Reference Price (USD)
1+
$2.43000
10+
$2.20500
100+
$1.89000
500+
$1.57500
1,000+
$1.35000
5,000+
$1.19700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IL-AG5-22P-D3T2 from JAE Electronics is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the IL-AG5-22P-D3T2 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose JAE Electronics for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.594" (15.09mm)
- Insulation Height: 0.717" (18.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
