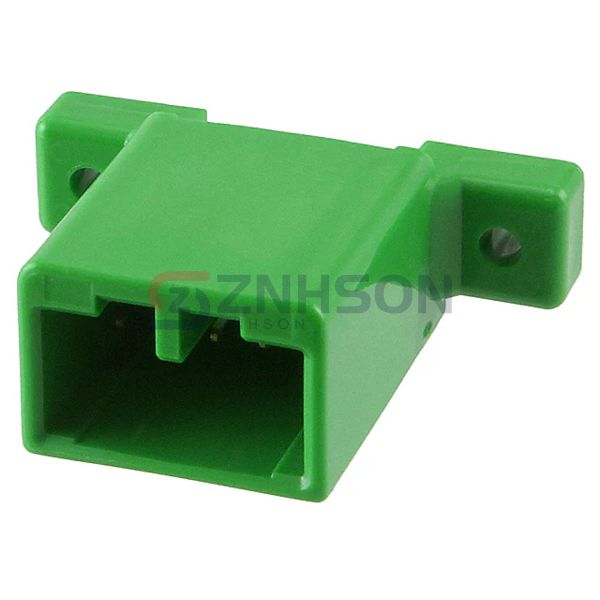

IL-AG7-5P-S3T2
JAE Electronics
JAE Electronics
CONN HEADER VERT 5POS 2.5MM
$0.91
Available to order
Reference Price (USD)
960+
$0.91800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the IL-AG7-5P-S3T2 rectangular connector header by JAE Electronics. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the IL-AG7-5P-S3T2 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust JAE Electronics for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.913" (23.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
850-10-043-30-135101
Samtec Inc.

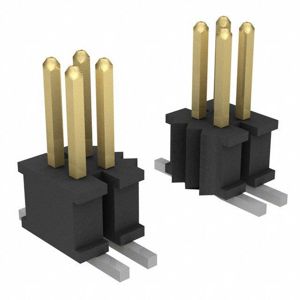

FTSH-113-01-LM-DV-P-TR
Preci-Dip

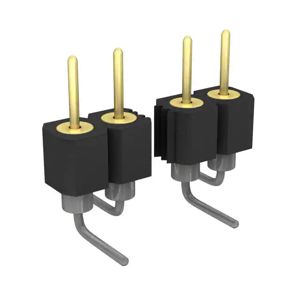

350-V3-123-00-106101
TE Connectivity AMP Connectors

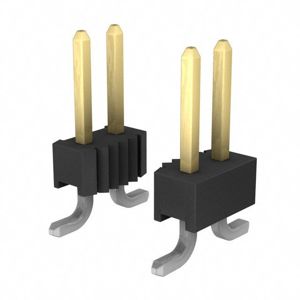

147279-2
Molex

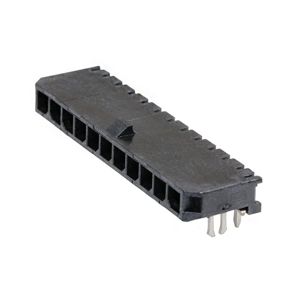

0436501111
Molex

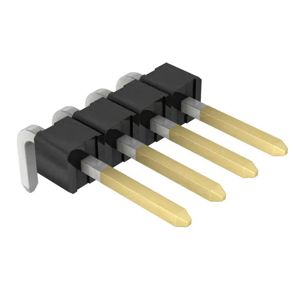

0022288045
Molex

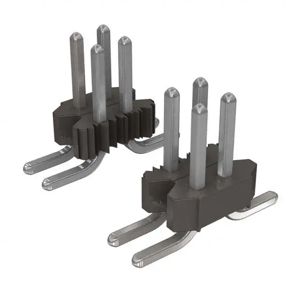

0015916160
Molex

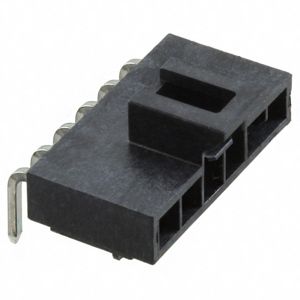

1053131206
Samtec Inc.

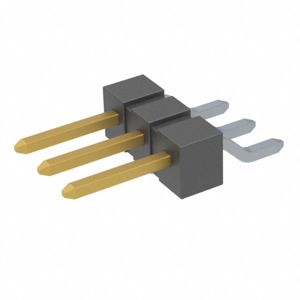

TSM-103-01-L-SH-K-TR
