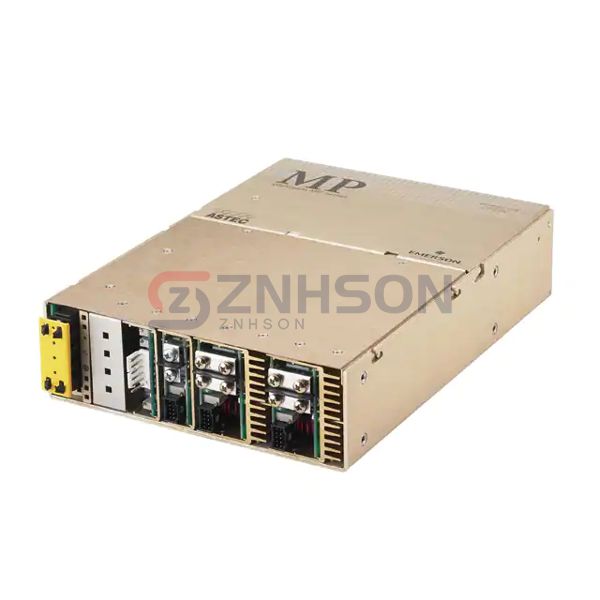

IMP4-1Q0-1Y1-1Y1-4NN1-00-A

Specifications

• Product Status: Active
• Type: Enclosed
• Number of Outputs: 5
• Voltage - Input: 85 ~ 264 VAC, 120 ~ 300 VDC
• Voltage - Output 1: 24V
• Voltage - Output 2: 60V
• Voltage - Output 3: 60V
• Voltage - Output 4: 15V
• Voltage - Output 5: 15V
• Voltage - Output 6: 15V
• Current - Output 1: 8.5 A
• Current - Output 2: 3.5 A
• Current - Output 3: 3.5 A
• Current - Output 4: 8 A
• Current - Output 5: 4 A
• Current - Output 6: -
• Power (Watts): 1100W
• Applications: ITE (Commercial), Medical
• Voltage - Isolation: 2 kV
• Efficiency: 85%
• Operating Temperature: -40°C ~ 70°C (With Derating)
• Features: Adjustable Output, I²C Interface, PFC, PMBus™, Remote Sense, Universal Input
• Mounting Type: Chassis Mount
• Size / Dimension: 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
• Approval Agency: CB, CE, CSA, UL
• Standard Number: -
