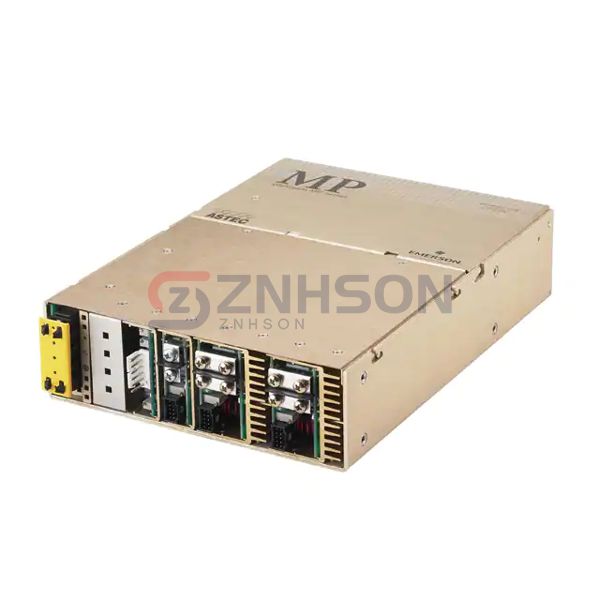

IMP4-2E0-4LL0-4QD0-00-A

Specifications

• Product Status: Active
• Type: Enclosed
• Number of Outputs: 5
• Voltage - Input: 85 ~ 264 VAC, 120 ~ 300 VDC
• Voltage - Output 1: 5V
• Voltage - Output 2: 12V
• Voltage - Output 3: 12V
• Voltage - Output 4: 24V
• Voltage - Output 5: 3.3V
• Voltage - Output 6: 3.3V
• Current - Output 1: 60 A
• Current - Output 2: 10 A
• Current - Output 3: 4 A
• Current - Output 4: 4 A
• Current - Output 5: 10 A
• Current - Output 6: -
• Power (Watts): 1100W
• Applications: ITE (Commercial), Medical
• Voltage - Isolation: 2 kV
• Efficiency: 85%
• Operating Temperature: -40°C ~ 70°C (With Derating)
• Features: Adjustable Output, I²C Interface, PFC, PMBus™, Remote Sense, Universal Input
• Mounting Type: Chassis Mount
• Size / Dimension: 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
• Approval Agency: CB, CE, CSA, UL
• Standard Number: -
