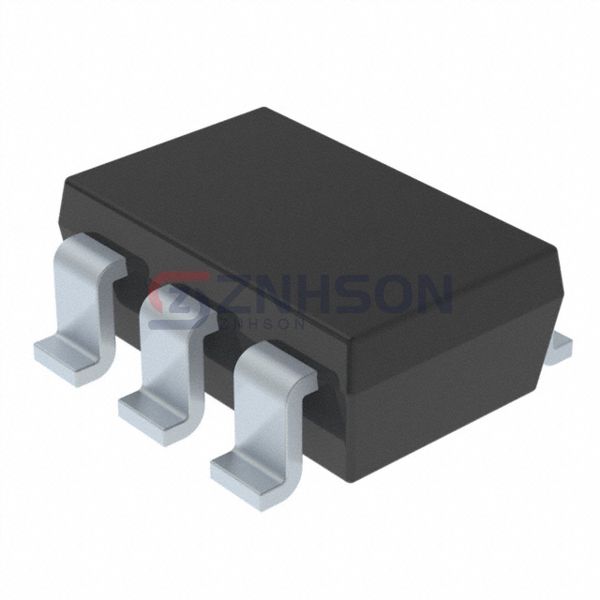

IMT4-7-F
Diodes Incorporated
Diodes Incorporated
TRANS 2PNP 120V 0.05A SOT26
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IMT4-7-F BJT Array Diodes Incorporated s flagship solution for Darlington pair configurations. This Discrete Semiconductor Product boasts high current gain (hFE) perfect for solenoid drivers, stepper motor controllers, and industrial PLCs. The IMT4-7-F is extensively used in robotics and power supply units due to its exceptional thermal management. Its lead-free compliance and RoHS certification make it an environmentally responsible choice for global markets.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 PNP (Dual)
- Current - Collector (Ic) (Max): 50mA
- Voltage - Collector Emitter Breakdown (Max): 120V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 180 @ 2mA, 6V
- Power - Max: 225mW
- Frequency - Transition: 140MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-26
