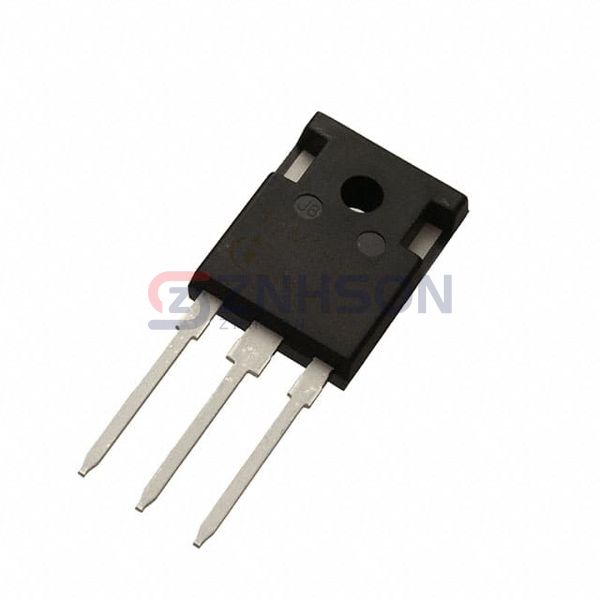

IMW120R220M1HXKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 13A TO247-3
$10.45
Available to order
Reference Price (USD)
1+
$10.45000
500+
$10.3455
1000+
$10.241
1500+
$10.1365
2000+
$10.032
2500+
$9.9275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the IMW120R220M1HXKSA1 single MOSFET from Infineon Technologies. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Infineon Technologies's IMW120R220M1HXKSA1 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V, 18V
- Rds On (Max) @ Id, Vgs: 286mOhm @ 4A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 1.6mA
- Gate Charge (Qg) (Max) @ Vgs: 8.5 nC @ 18 V
- Vgs (Max): +23V, -7V
- Input Capacitance (Ciss) (Max) @ Vds: 289 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 75W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-3-41
- Package / Case: TO-247-3
