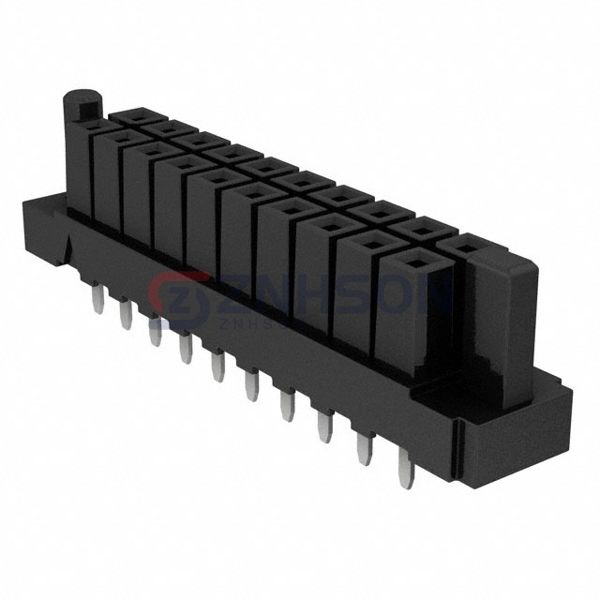

IPBS-110-01-T-D-GP
Samtec Inc.
Samtec Inc.
CONN HDR 20POS 0.165 TIN PCB
$7.38
Available to order
Reference Price (USD)
1+
$4.40000
10+
$4.22400
100+
$3.52000
500+
$2.99200
1,000+
$2.55200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBS-110-01-T-D-GP Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.165" (4.20mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.480" (12.20mm)
- Contact Length - Post: 0.155" (3.94mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Guide Pin
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
Preci-Dip
310-83-149-01-666101
Samtec Inc.
MMS-112-02-LM-DH-TR
Preci-Dip
853-87-034-10-001101
Preci-Dip
311-87-144-41-001101
Mill-Max Manufacturing Corp.
310-13-120-41-001000

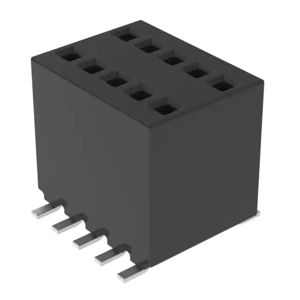

Samtec Inc.
RSM-108-02-L-D-K-TR

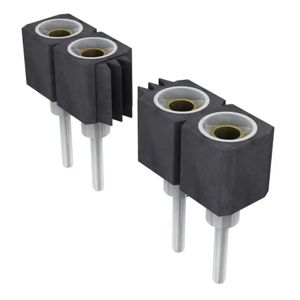

Mill-Max Manufacturing Corp.
310-41-163-41-001000

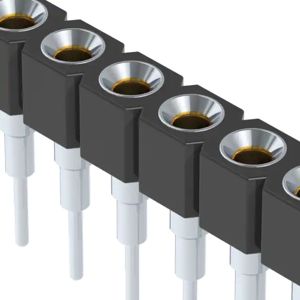

Mill-Max Manufacturing Corp.
