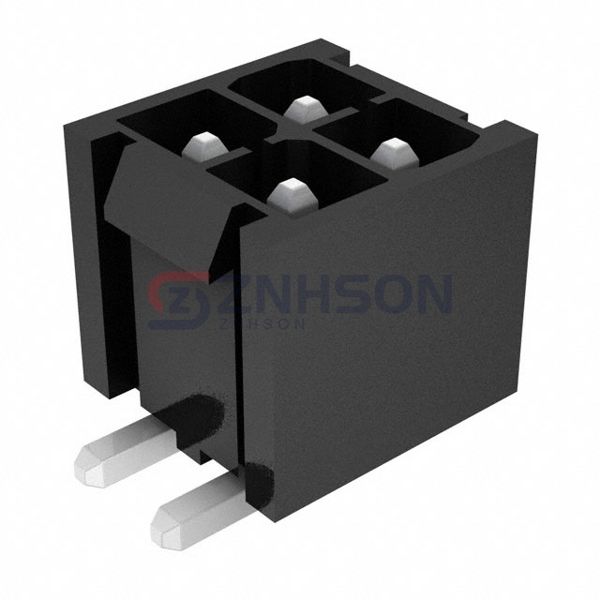

IPBT-102-H2-T-D-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 4POS 4.2MM
$2.55
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32300
100+
$1.13400
500+
$0.94500
1,000+
$0.81000
5,000+
$0.71820
10,000+
$0.70200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-102-H2-T-D-K male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
Preci-Dip
852-80-028-20-002101
TE Connectivity AMP Connectors
4-103783-0-22
JST Sales America Inc.
B09B-PASK(LF)(SN)
Amphenol ICC (FCI)
75168-813-36LF
Samtec Inc.
MMT-113-02-L-MT
Samtec Inc.
FTMH-108-03-L-DV-ES-P-TR
TE Connectivity AMP Connectors
9-102974-0-06
Adam Tech
LHD-03-TRA
TE Connectivity AMP Connectors

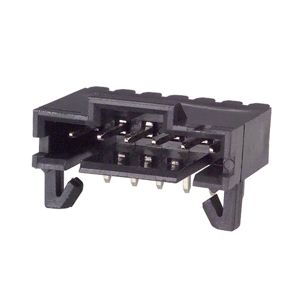

103672-5
