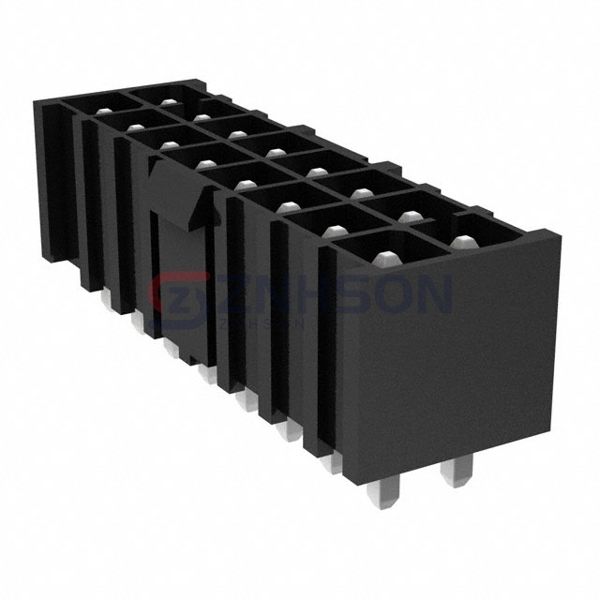

IPBT-108-H1-T-D-K
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 16POS 4.2MM
$4.67
Available to order
Reference Price (USD)
1+
$2.68000
16+
$2.56813
112+
$2.14000
512+
$1.81900
1,008+
$1.55150
5,008+
$1.39100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IPBT-108-H1-T-D-K rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the IPBT-108-H1-T-D-K adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
