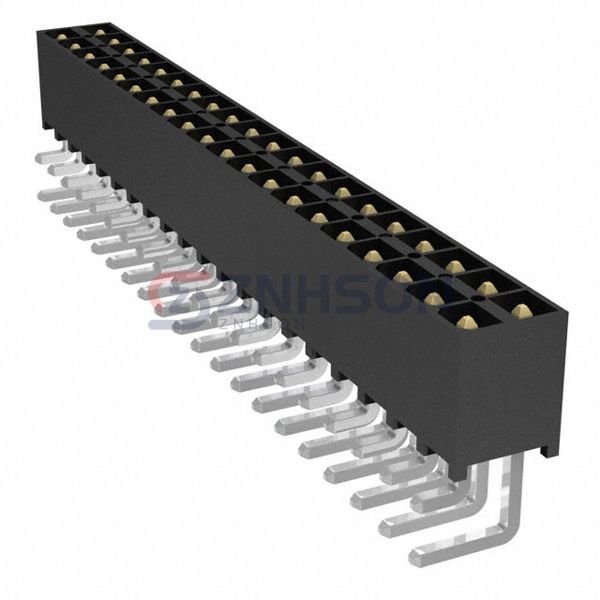

IPT1-120-01-L-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 40POS 2.54MM
$8.22
Available to order
Reference Price (USD)
1+
$5.10000
11+
$4.31182
110+
$3.33200
506+
$2.74399
1,001+
$2.54800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPT1-120-01-L-D-RA male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.155" (3.94mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.3A per Contact
- Voltage Rating: 775VAC, 1095VDC
Related Products
Molex
0751020103
Molex
55917-2630
Samtec Inc.
TOLC-110-12-F-Q
Amphenol ICC (FCI)
68002-126HLF
TE Connectivity AMP Connectors
1-2232044-4
Samtec Inc.
TMS-120-01-G-S
Harwin Inc.
M80-5L12642MC
TE Connectivity AMP Connectors
4-103240-0-07
Amphenol ICC (FCI)

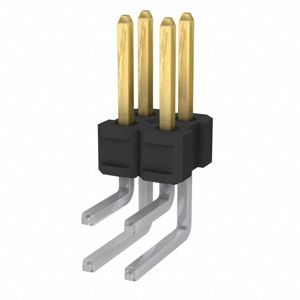

77319-803-04LF
