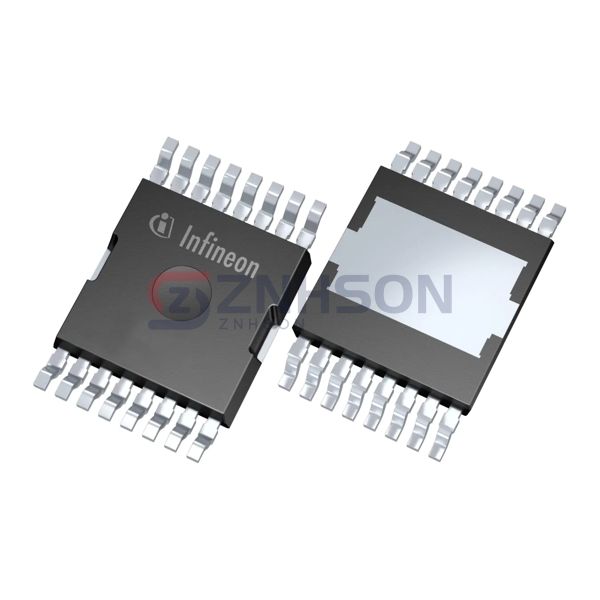

IPTC012N08NM5ATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 80V 40A/396A HDSOP
$9.19
Available to order
Reference Price (USD)
1+
$9.19000
500+
$9.0981
1000+
$9.0062
1500+
$8.9143
2000+
$8.8224
2500+
$8.7305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPTC012N08NM5ATMA1 by Infineon Technologies is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IPTC012N08NM5ATMA1 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 40A (Ta), 396A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 1.2mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 275µA
- Gate Charge (Qg) (Max) @ Vgs: 219 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 16000 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 375W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-HDSOP-16-2
- Package / Case: 16-PowerSOP Module
