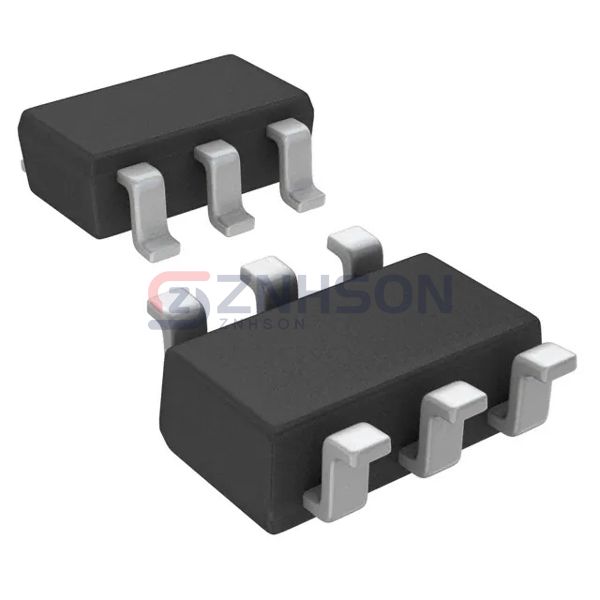

IRF5804TR
Infineon Technologies
Infineon Technologies
MOSFET P-CH 40V 2.5A MICRO6
$0.00
Available to order
Reference Price (USD)
3,000+
$0.28710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the IRF5804TR single MOSFET from Infineon Technologies. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Infineon Technologies's IRF5804TR for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 198mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 680 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: Micro6™(TSOP-6)
- Package / Case: SOT-23-6 Thin, TSOT-23-6
