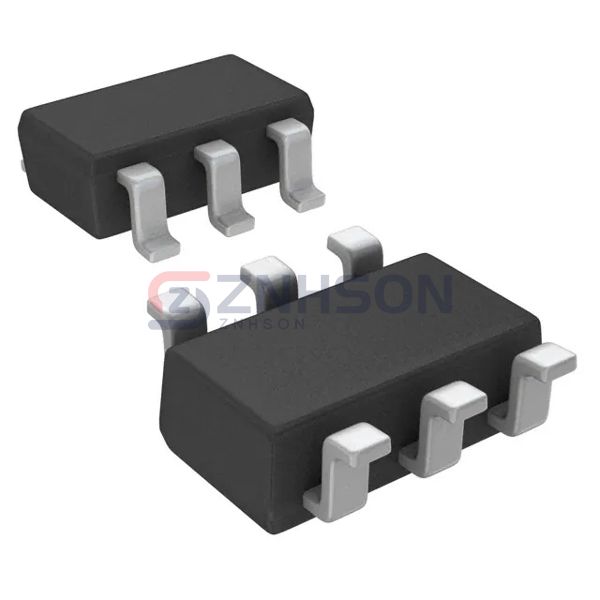

IRF5806
Infineon Technologies
Infineon Technologies
MOSFET P-CH 20V 4A MICRO6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRF5806 by Infineon Technologies is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IRF5806 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 86mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.4 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 594 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: Micro6™(TSOP-6)
- Package / Case: SOT-23-6 Thin, TSOT-23-6
Related Products
Infineon Technologies
IRLZ44ZSTRRPBF
Vishay Siliconix
SI4362BDY-T1-E3
STMicroelectronics
STI21NM60ND
Alpha & Omega Semiconductor Inc.
AOL1702
Sanken
DKI04035
Infineon Technologies
IRFH8330TR2PBF
onsemi

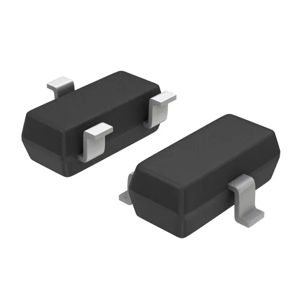

2SK536-TB-E
