IRF7707
Infineon Technologies
Infineon Technologies
MOSFET P-CH 20V 7A 8TSSOP
$0.00
Available to order
Reference Price (USD)
100+
$1.23750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRF7707 by Infineon Technologies is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Infineon Technologies for innovation you can depend on.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 7A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 47 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2361 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSSOP
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Related Products
Diodes Incorporated
DMP1096UCB4-7
Infineon Technologies
IRLU9343PBF
Panasonic Electronic Components
2SK302500L
Fairchild Semiconductor
HUF76419S3ST_NL
STMicroelectronics
STD75N3LLH6
Nexperia USA Inc.
PMK30EP,518
Infineon Technologies
IRFI4228PBF
Renesas Electronics America Inc

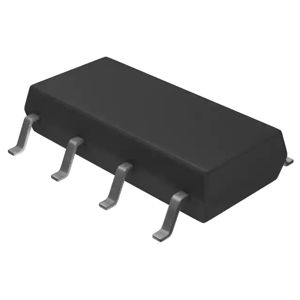

RJK0354DSP-00#J0
onsemi

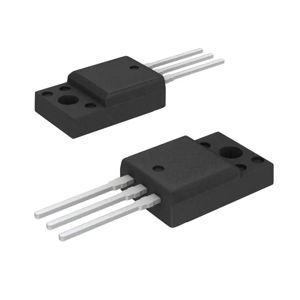

FQPF4N90CT
