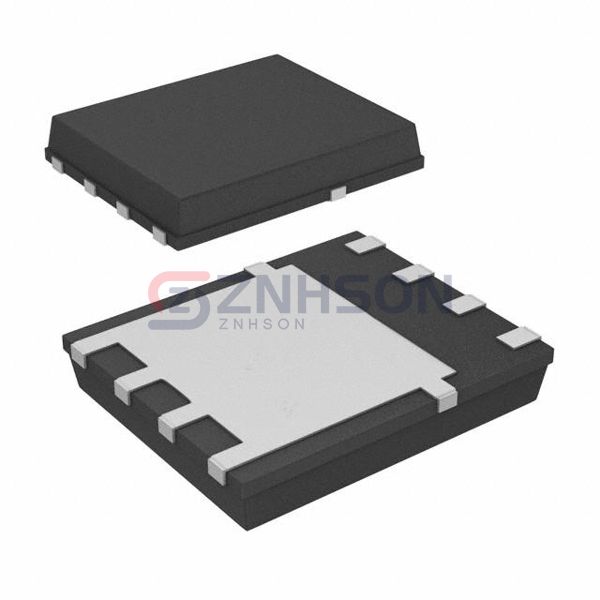

IRFH5204TRPBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 40V 22A/100A PQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRFH5204TRPBF single MOSFET from Infineon Technologies is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IRFH5204TRPBF is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.3mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 4V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 65 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2460 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.6W (Ta), 105W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PQFN (5x6)
- Package / Case: 8-VQFN Exposed Pad
