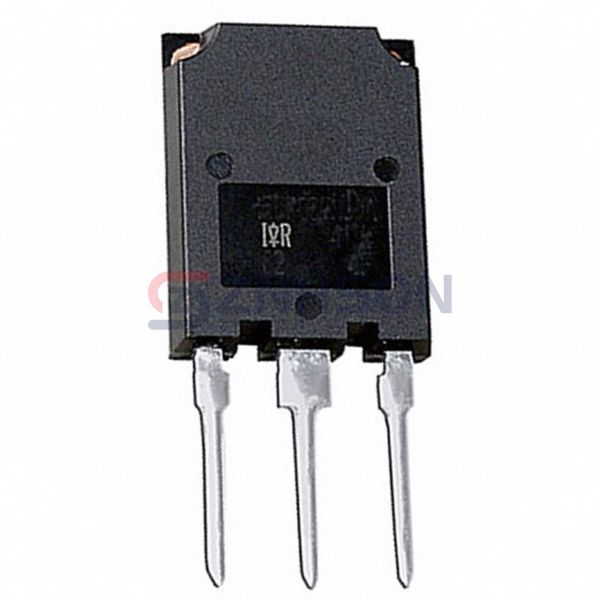

IRFPS3815PBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 150V 105A SUPER247
$0.00
Available to order
Reference Price (USD)
7,000+
$3.87800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IRFPS3815PBF by Infineon Technologies, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IRFPS3815PBF is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 105A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 15mOhm @ 63A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 390 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 6810 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 441W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: SUPER-247™ (TO-274AA)
- Package / Case: TO-274AA
Related Products
Infineon Technologies
IPB65R095C7ATMA1
Infineon Technologies
IRFL014NPBF
STMicroelectronics
STP30NM60ND
onsemi
NTLUS3A18PZCTAG
Infineon Technologies
IRF7809AVTRPBF-1
IXYS
IXTU06N120P
Vishay Siliconix
SI3853DV-T1-E3
STMicroelectronics
STW8NK80Z
Toshiba Semiconductor and Storage

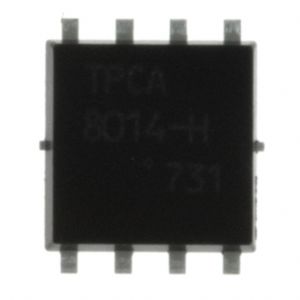

TPCA8007-H(TE12L,Q
