IRG4PH50UDPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 45A 200W TO247AC
$0.00
Available to order
Reference Price (USD)
1+
$8.70000
10+
$7.86000
100+
$6.50750
500+
$5.66662
1,000+
$4.93545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PH50UDPBF from Infineon Technologies is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose IRG4PH50UDPBF for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 45 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 24A
- Power - Max: 200 W
- Switching Energy: 2.1mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 160 nC
- Td (on/off) @ 25°C: 47ns/110ns
- Test Condition: 800V, 24A, 5Ohm, 15V
- Reverse Recovery Time (trr): 90 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
Related Products
IXYS
IXRH40N120
Infineon Technologies
AUIRGS30B60K
IXYS
IXGR60N60C2
Infineon Technologies
IKD04N60R
Fairchild Semiconductor
ISL9V2040S3S
STMicroelectronics

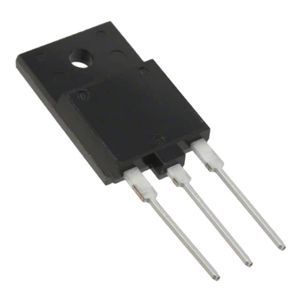

STGFW30V60F
Infineon Technologies

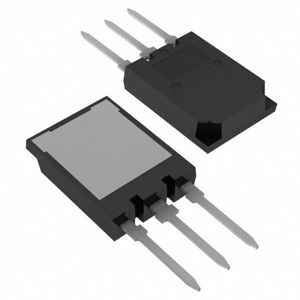

IRGPS46160DPBF
IXYS

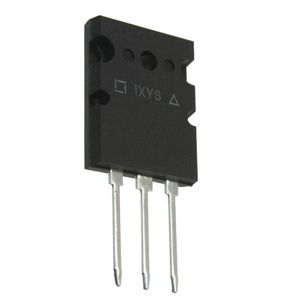

IXGK120N60C2
