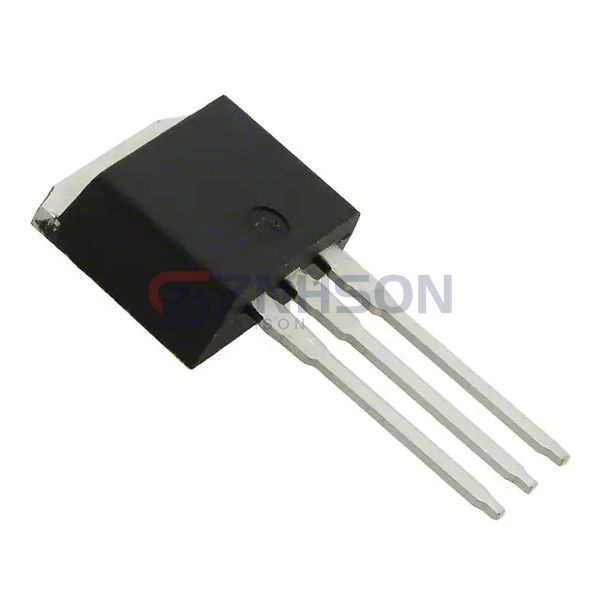

IRL3302L
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 20V 39A TO262-3
$0.00
Available to order
Reference Price (USD)
500+
$1.00100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IRL3302L by Vishay Siliconix, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IRL3302L is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Discontinued at Digi-Key
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 39A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 7V
- Rds On (Max) @ Id, Vgs: 20mOhm @ 23A, 7V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 57W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-262-3
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
