IRL5602S
Infineon Technologies
Infineon Technologies
MOSFET P-CH 20V 24A D2PAK
$0.00
Available to order
Reference Price (USD)
300+
$1.89420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRL5602S from Infineon Technologies sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Infineon Technologies's IRL5602S for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 42mOhm @ 12A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 44 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1460 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 75W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Vishay Siliconix
SIE836DF-T1-E3
Alpha & Omega Semiconductor Inc.
AON6536
Vishay Siliconix
SI4448DY-T1-E3
Vishay Siliconix
SI7459DP-T1-GE3
Infineon Technologies
BSS139L6906HTSA1
Renesas Electronics America Inc
RJK0602DPN-E0#T2
Alpha & Omega Semiconductor Inc.
AOT11C60PL
STMicroelectronics
STB23NM60N
onsemi

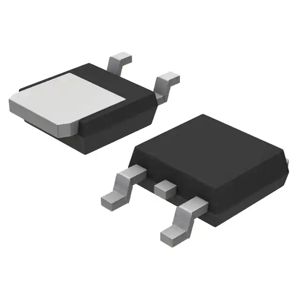

SFT1342-TL-W
