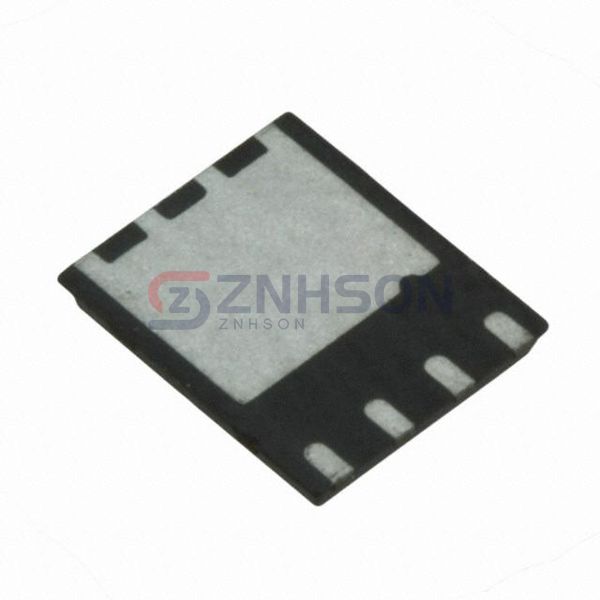

IRLH5036TRPBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 60V 20A/100A 8PQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRLH5036TRPBF from Infineon Technologies, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IRLH5036TRPBF ensures reliable performance in demanding environments. Upgrade your circuit designs with Infineon Technologies's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 150µA
- Gate Charge (Qg) (Max) @ Vgs: 90 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 5360 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.6W (Ta), 160W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Vishay Siliconix
IRFD214
Infineon Technologies
BSS670S2LL6327HTSA1
Fairchild Semiconductor
FQPF5N60
STMicroelectronics
STB60N55F3
onsemi
2N7002_NB9G002
onsemi
MTD15N06V1
Infineon Technologies
IPW60R280C6FKSA1
Infineon Technologies
IRLR4343PBF
Vishay Siliconix

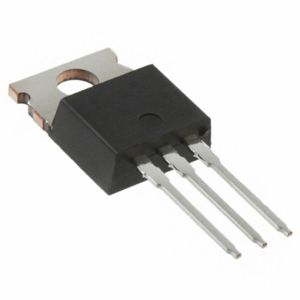

IRFB9N65A
