IRLR3114ZPBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 40V 42A DPAK
$0.00
Available to order
Reference Price (USD)
1+
$2.07000
10+
$1.88000
100+
$1.53120
500+
$1.21424
1,000+
$1.02404
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IRLR3114ZPBF by Infineon Technologies, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IRLR3114ZPBF is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Discontinued at Digi-Key
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 42A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.9mOhm @ 42A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 4.5 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 3810 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 140W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-Pak
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
IXYS
IXFC80N08
Infineon Technologies
IRF7807VD2TR
Infineon Technologies
IRF2804SPBF
onsemi
FQP2N40
Infineon Technologies
IRLR024NTRRPBF
Taiwan Semiconductor Corporation
TSM9ND50CI
IXYS
IXFX30N50Q
Infineon Technologies
SPP100N03S2L03
Vishay Siliconix

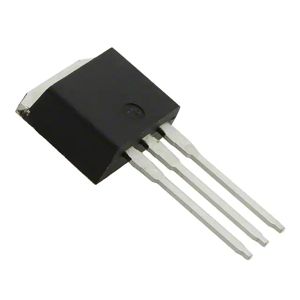

IRF730L
