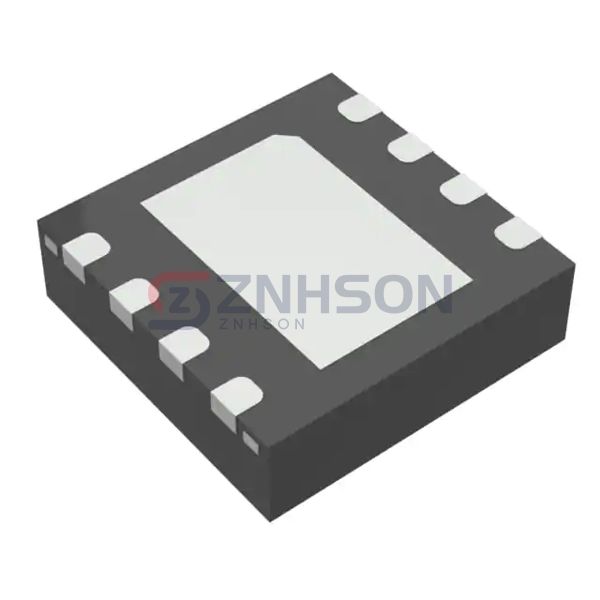

ISL43L122IRZ
Renesas Electronics America Inc
Renesas Electronics America Inc
IC SWITCH DUAL SPST 8TDFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Renesas Electronics America Inc's ISL43L122IRZ, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ISL43L122IRZ meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 250mOhm
- Channel-to-Channel Matching (ΔRon): 5mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 25ns, 25ns
- -3db Bandwidth: -
- Charge Injection: -125pC
- Channel Capacitance (CS(off), CD(off)): 182pF, 182pF
- Current - Leakage (IS(off)) (Max): 3nA
- Crosstalk: -94dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-TDFN (3x3)
