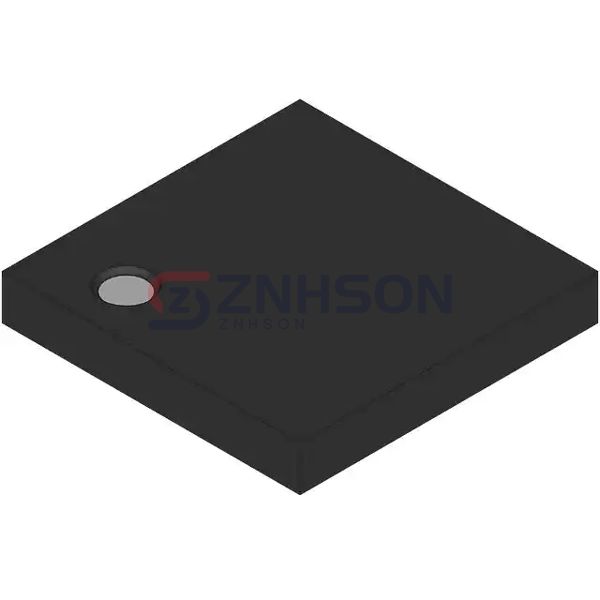

ISL6414IRZ

Intersil

Manufacturer

Intersil

Description:

IC REG LINEAR 1.8V/2.84V 16QFN

Datasheet:

ISL6414IRZ Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ISL6414IRZ from Intersil is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 3
Voltage - Input (Max): 3.6V
Voltage - Output (Min/Fixed): 1.8V, 2.84V, 2.84V
Voltage - Output (Max): -
Voltage Dropout (Max): -, 0.22V @ 300mA, 0.2V @ 200mA
Current - Output: 500mA, 300mA, 200mA
Current - Quiescent (Iq): 850 µA
Current - Supply (Max): -
PSRR: -
Control Features: Enable, Fault Output, Reset
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 16-VQFN Exposed Pad
Supplier Device Package: 16-QFN (4x4)
