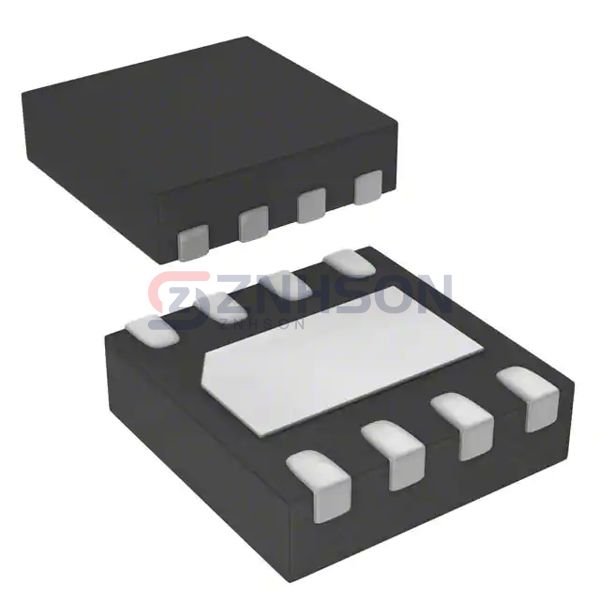

ISL80505IRAJZ
Renesas Electronics America Inc
Renesas Electronics America Inc
IC REG LINEAR POS ADJ 500MA 8DFN
$1.26
Available to order
Reference Price (USD)
800+
$0.55100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ISL80505IRAJZ linear voltage regulator IC by Renesas Electronics America Inc, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this ISL80505IRAJZ model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 5.5V
- Voltage Dropout (Max): 0.09V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 4.6 mA
- Current - Supply (Max): 5.7 mA
- PSRR: 60dB ~ 57dB (120Hz ~ 1kHz)
- Control Features: Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN (3x3)
Related Products
Texas Instruments
LM3940IMPX-3.3
Texas Instruments
LM120H-5.0
Renesas Electronics America Inc
UPC7893AHF-AZ
Analog Devices Inc./Maxim Integrated
MAX6475TA15BD3+T
ABLIC Inc.
S-1711C2J2J-I6T1U
Texas Instruments

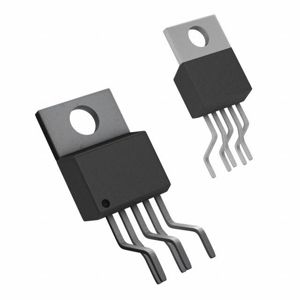

LP3966ET-ADJ/NOPB
Microchip Technology

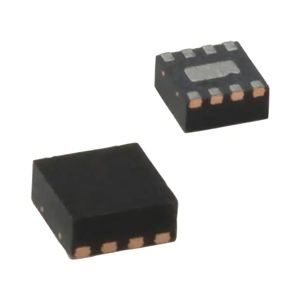

MIC5330-OOYML-TR
Nisshinbo Micro Devices Inc.

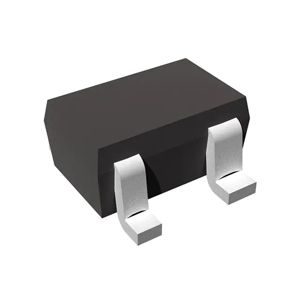

RD5RW18BA-TR-FE
