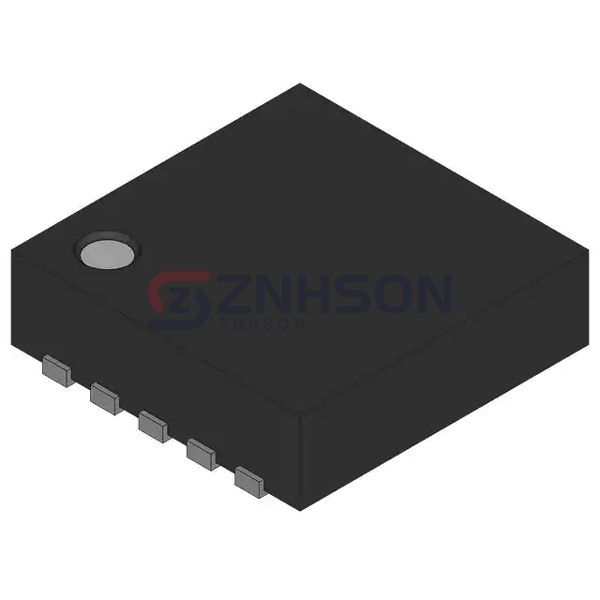

ISL9011IRNFZ

Intersil

Manufacturer

Intersil

Description:

IC REG LINEAR 3.3V/2.5V 10DFN

Datasheet:

ISL9011IRNFZ Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ISL9011IRNFZ from Intersil is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 2
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 3.3V, 2.5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.2V @ 150mA, 0.4V @ 300mA
Current - Output: 150mA, 300mA
Current - Quiescent (Iq): 40 µA
Current - Supply (Max): 60 µA
PSRR: -
Control Features: Enable
Protection Features: Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 10-VFDFN Exposed Pad
Supplier Device Package: 10-DFN (3x3)
