JAN1N4114D-1
Microchip Technology
Microchip Technology
DIODE ZENER 20V DO35
$12.63
Available to order
Reference Price (USD)
100+
$11.18600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JAN1N4114D-1 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JAN1N4114D-1 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±1%
- Power - Max: -
- Impedance (Max) (Zzt): 150 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 15.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
Microchip Technology
JAN1N3031B-1/TR
Panjit International Inc.
PZS5113BCH_R1_00001
Microchip Technology
JANTX1N977CUR-1/TR
Vishay General Semiconductor - Diodes Division
SMBZ5921B-E3/52
Microchip Technology
JANTX1N747DUR-1/TR
Vishay General Semiconductor - Diodes Division
BZM55C20-TR
Vishay General Semiconductor - Diodes Division
MMSZ4687-G3-08
Microchip Technology

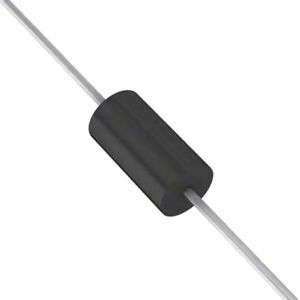

JAN1N3021C-1/TR
