JAN1N4125-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$4.10
Available to order
Reference Price (USD)
1+
$4.09500
500+
$4.05405
1000+
$4.0131
1500+
$3.97215
2000+
$3.9312
2500+
$3.89025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JAN1N4125-1/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JAN1N4125-1/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 47 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 250 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 35.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
Related Products
Central Semiconductor Corp
CMPZ5261B BK PBFREE
Yangzhou Yangjie Electronic Technology Co.,Ltd
BZT52B3V6S-F2-0000HF
Nexperia USA Inc.
BZX58550-C16-QX
Microchip Technology
CDLL6334/TR
Microchip Technology
JANTX1N756CUR-1
Microchip Technology

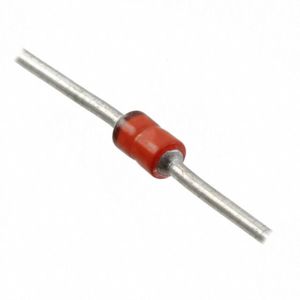

JANS1N4476
Microchip Technology
JAN1N4135CUR-1
Vishay General Semiconductor - Diodes Division

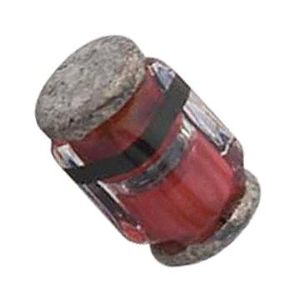

BZM55C3V9-TR
