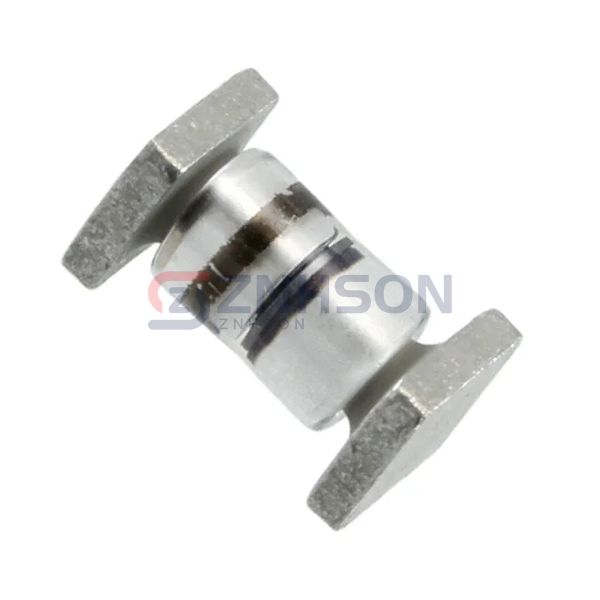

JAN1N5420US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$10.77
Available to order
Reference Price (USD)
1+
$10.77000
500+
$10.6623
1000+
$10.5546
1500+
$10.4469
2000+
$10.3392
2500+
$10.2315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the JAN1N5420US/TR single rectifier diode from Microchip Technology. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The JAN1N5420US/TR is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Microchip Technology's commitment to innovation ensures that the JAN1N5420US/TR meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 9 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 400 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 600 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: D-5B
- Operating Temperature - Junction: -65°C ~ 175°C
