JAN1N5546B-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$5.46
Available to order
Reference Price (USD)
1+
$5.46000
500+
$5.4054
1000+
$5.3508
1500+
$5.2962
2000+
$5.2416
2500+
$5.187
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the JAN1N5546B-1/TR Zener diode from Microchip Technology is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The JAN1N5546B-1/TR is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 33 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 29.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
onsemi
MMBZ5260BLT1
Microchip Technology

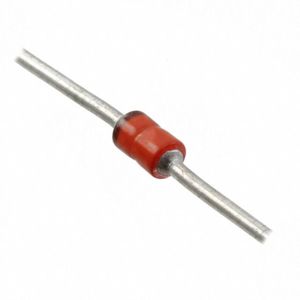

JAN1N3017D-1
Panjit International Inc.
PZS5217BCH_R1_00001
Vishay General Semiconductor - Diodes Division
MMSZ4705-E3-08
Vishay General Semiconductor - Diodes Division

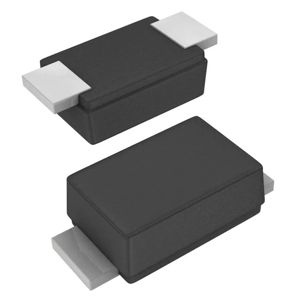

BZD27C8V2P-HE3-08
Nexperia USA Inc.

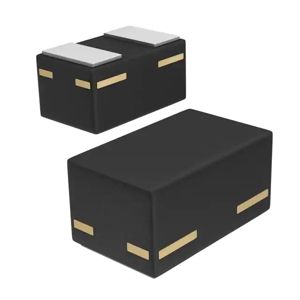

PZU6.2BL,315
