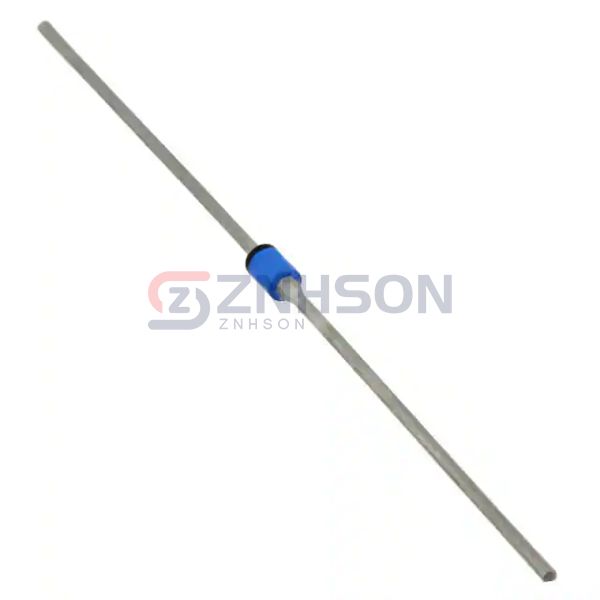

JAN1N5806/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$4.88
Available to order
Reference Price (USD)
1+
$4.87500
500+
$4.82625
1000+
$4.7775
1500+
$4.72875
2000+
$4.68
2500+
$4.63125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the JAN1N5806/TR single rectifier diode by Microchip Technology, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The JAN1N5806/TR is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Microchip Technology's JAN1N5806/TR for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 2.5A
- Voltage - Forward (Vf) (Max) @ If: 975 mV @ 2.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
IXYS
DSEI60-10A
SMC Diode Solutions
18TQ035S
Vishay General Semiconductor - Diodes Division
SE20FJHM3/H
Taiwan Semiconductor Corporation
ES15JLW RVG
Taiwan Semiconductor Corporation
SR304 A0G
Diodes Incorporated
DSC10065
Panjit International Inc.
MB55_R1_00001
Vishay General Semiconductor - Diodes Division
MPG06K-E3/73
Vishay General Semiconductor - Diodes Division

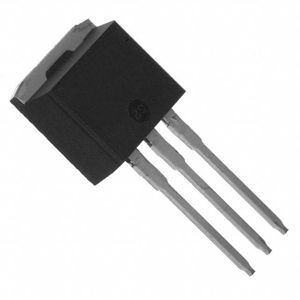

VI20150S-E3/4W
