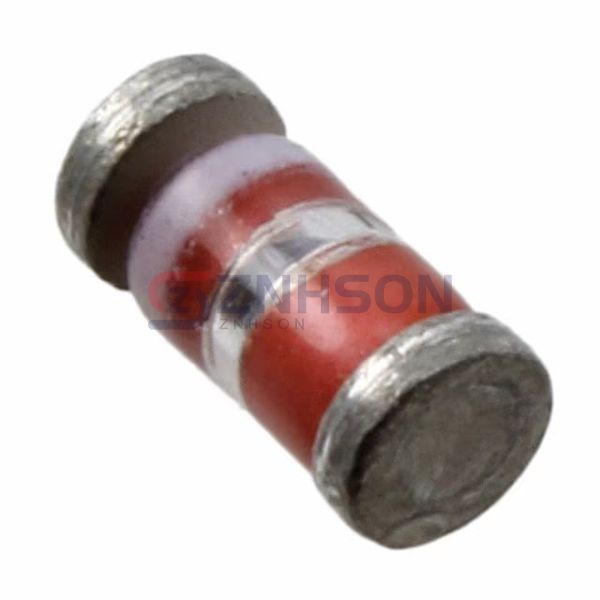

JAN1N970DUR-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$13.84
Available to order
Reference Price (USD)
1+
$13.84500
500+
$13.70655
1000+
$13.5681
1500+
$13.42965
2000+
$13.2912
2500+
$13.15275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JAN1N970DUR-1/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JAN1N970DUR-1/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 24 V
- Tolerance: ±1%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 33 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 18 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
