JANS1N4109CUR-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$94.35
Available to order
Reference Price (USD)
1+
$94.35000
500+
$93.4065
1000+
$92.463
1500+
$91.5195
2000+
$90.576
2500+
$89.6325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANS1N4109CUR-1/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANS1N4109CUR-1/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
Related Products
Microchip Technology
JAN1N3039DUR-1/TR
Microchip Technology
JANTX1N3045CUR-1
Microchip Technology
1N746A-1E3
Microchip Technology

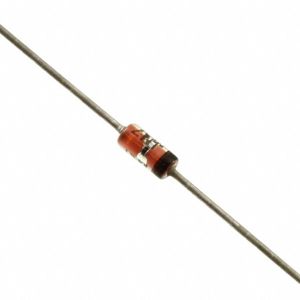

JANS1N6310D
Micro Commercial Co

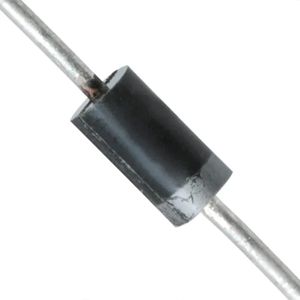

1N4745-TP
Vishay General Semiconductor - Diodes Division
BZX84B20-E3-18
Microchip Technology

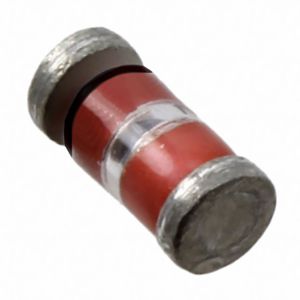

JANTXV1N3020DUR-1
Microchip Technology

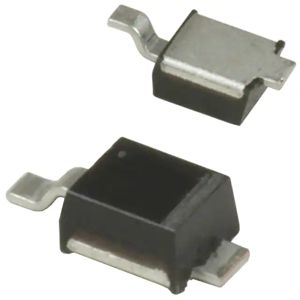

1PMT5927BE3/TR7
Taiwan Semiconductor Corporation

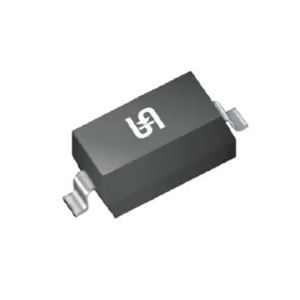

BZT52C43-G RHG
