JANTX1N4109DUR-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$26.84
Available to order
Reference Price (USD)
1+
$26.83500
500+
$26.56665
1000+
$26.2983
1500+
$26.02995
2000+
$25.7616
2500+
$25.49325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the JANTX1N4109DUR-1/TR Zener diode from Microchip Technology is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The JANTX1N4109DUR-1/TR is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±1%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
Related Products
Microchip Technology
JANTX1N968C-1/TR
Microchip Technology
JANS1N4107UR-1/TR
Fairchild Semiconductor
BZX85C6V2
Microchip Technology
JANTX1N4993US/TR
Microchip Technology
JANTXV1N4113CUR-1/TR
Renesas Electronics America Inc
HZ15BP-JTK-E
Nexperia USA Inc.
BZX884S-C56-QYL
NTE Electronics, Inc
NTE5089A
Microchip Technology

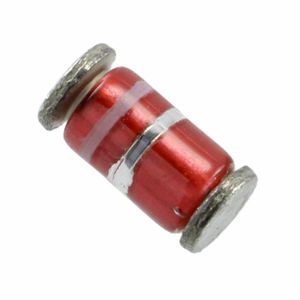

CDLL973

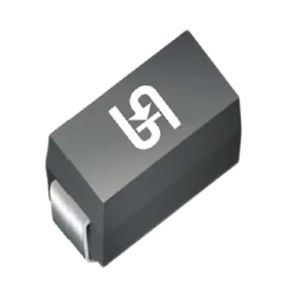

Taiwan Semiconductor Corporation
